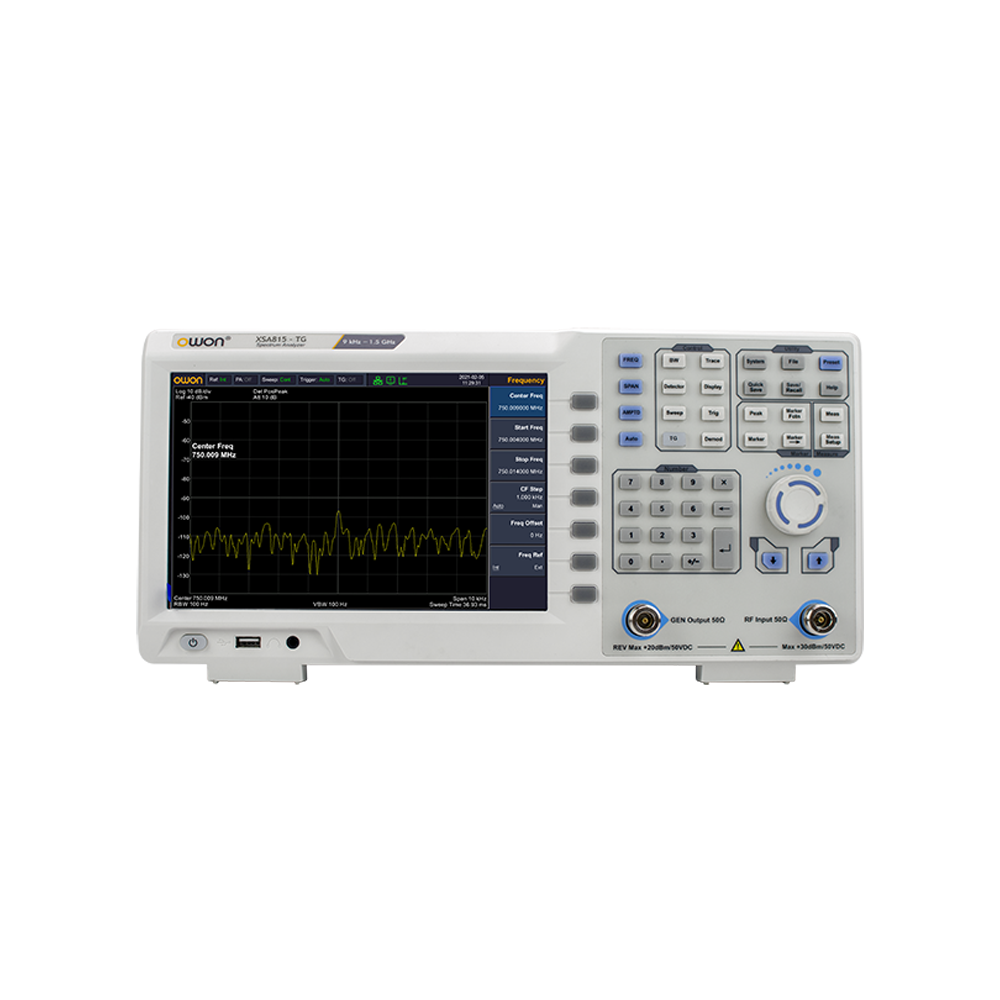

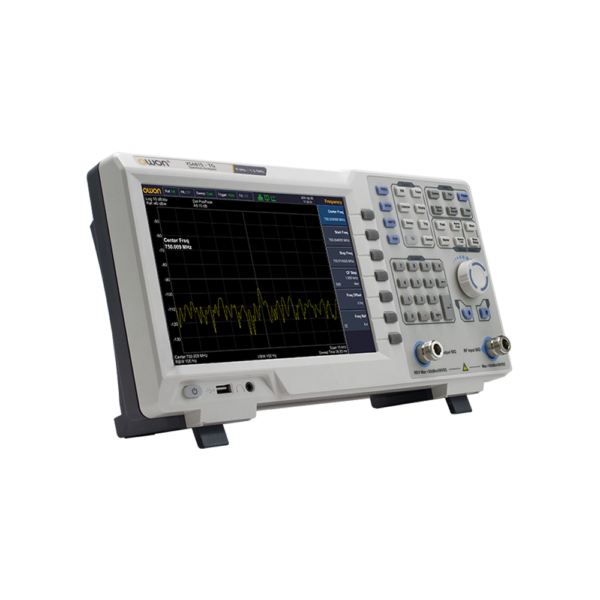

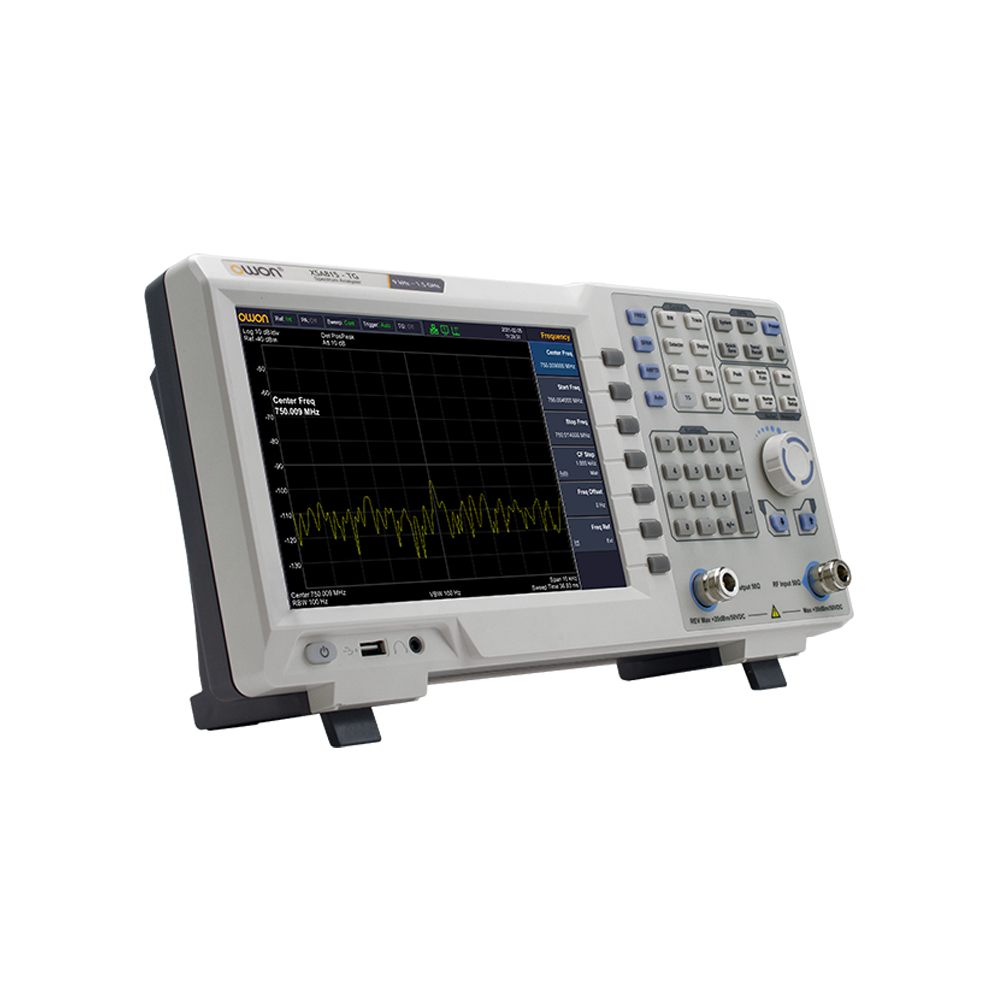

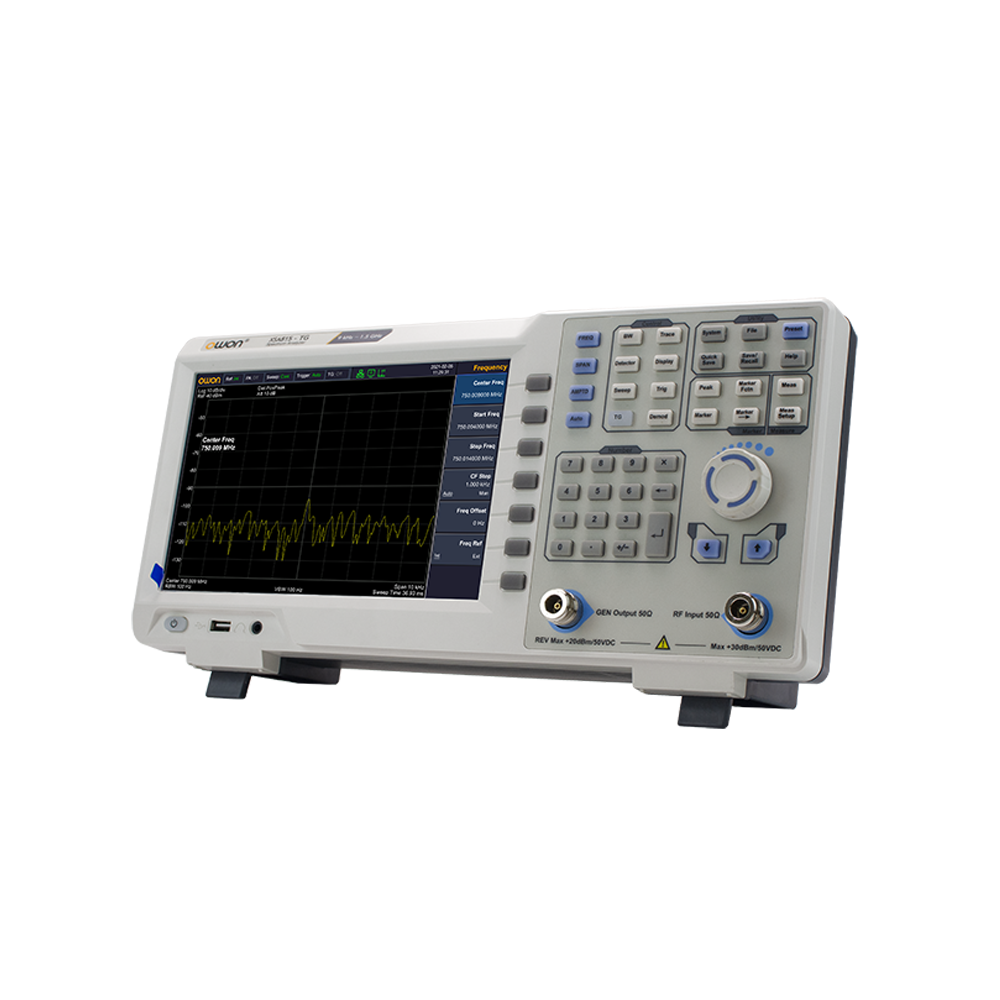

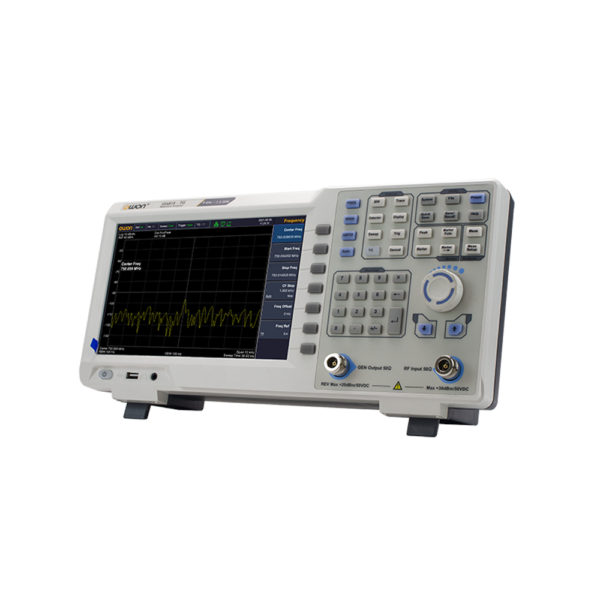

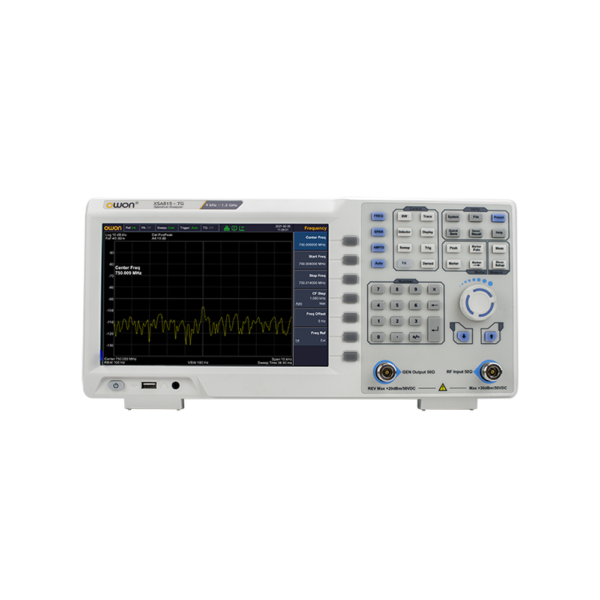

Analizador De Espectro Owon XSA810-TG 9Hz - 1 GHz Con Generador de Tracking
Analizador De Espectro Owon XSA810-TG 9Hz - 1 GHz Con Generador de Tracking - Imagen 2
Analizador De Espectro Owon XSA810-TG 9Hz - 1 GHz Con Generador de Tracking - Imagen 3
Analizador De Espectro Owon XSA810-TG 9Hz - 1 GHz Con Generador de Tracking - Imagen 4
Analizador De Espectro Owon XSA810-TG 9Hz - 1 GHz Con Generador de Tracking - Imagen 5

Analizador De Espectro Owon XSA810-TG 9Hz – 1 GHz Con Generador de Tracking

– Frequency range 9kHz – 1 GHz
– 160 dBm Displayed Average Noise Level (DANL)
– Phase noise -80 dBc/Hz @1GHz and offset at 10 kHz
– Total amplitude accuracy <0.7 dB

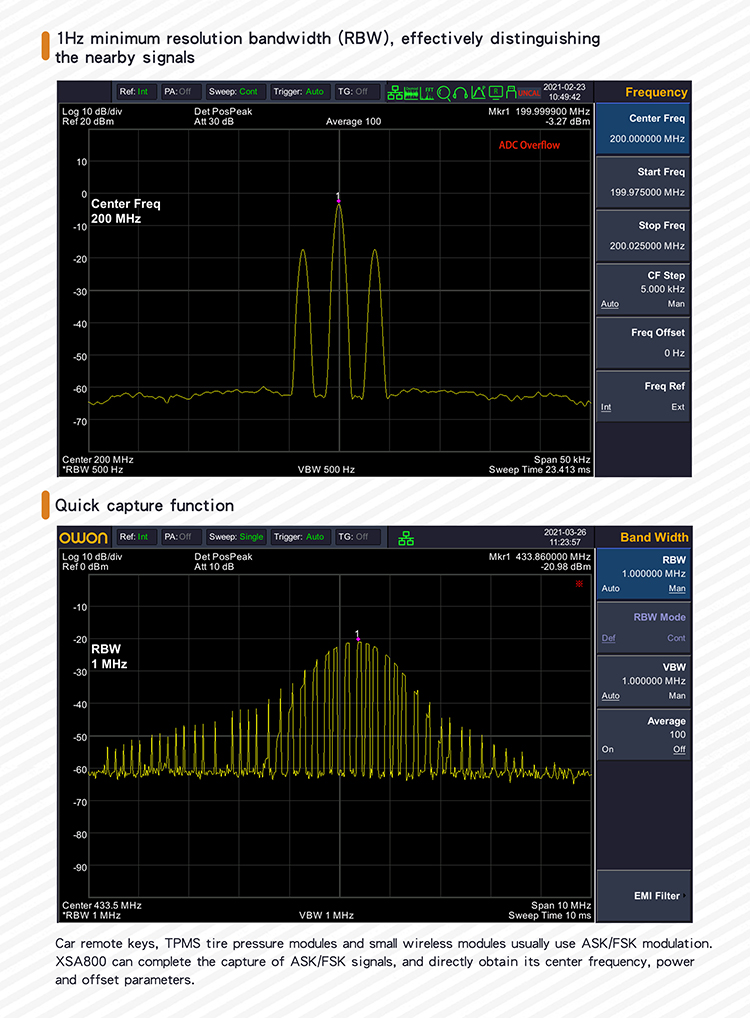

– 1 Hz minimum resolution bandwidth (RBW)
– EMI pre-compliance test kit, optional EMC test software
– Optional tracking generator (standard tracking generator hardware, can be remotely upgraded according to needs)

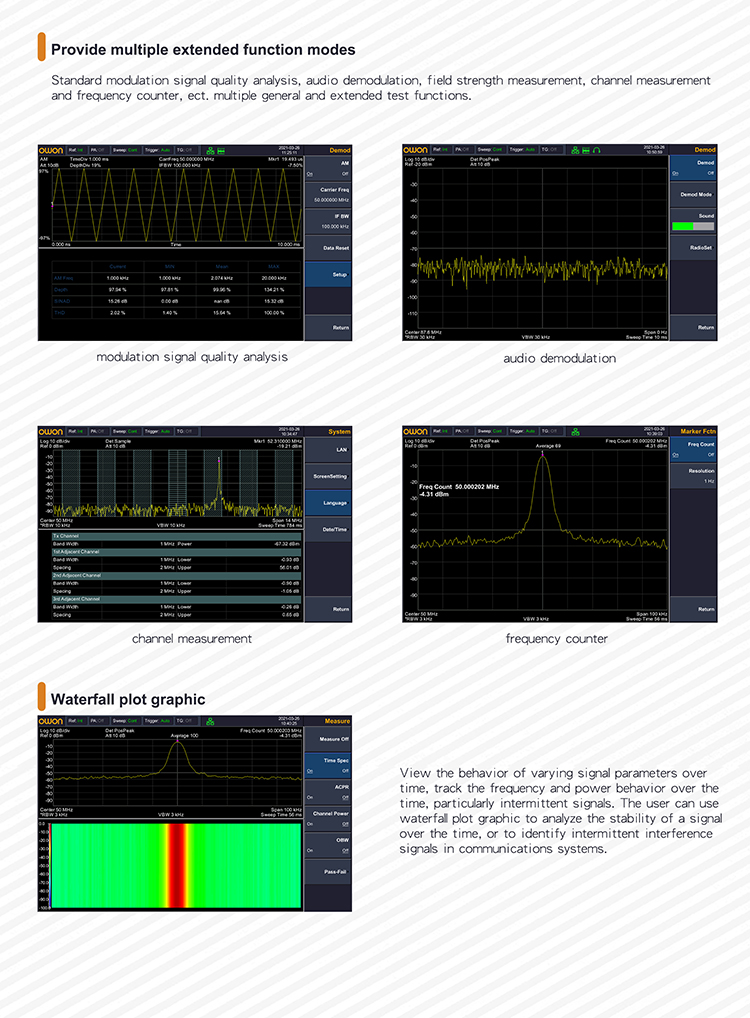

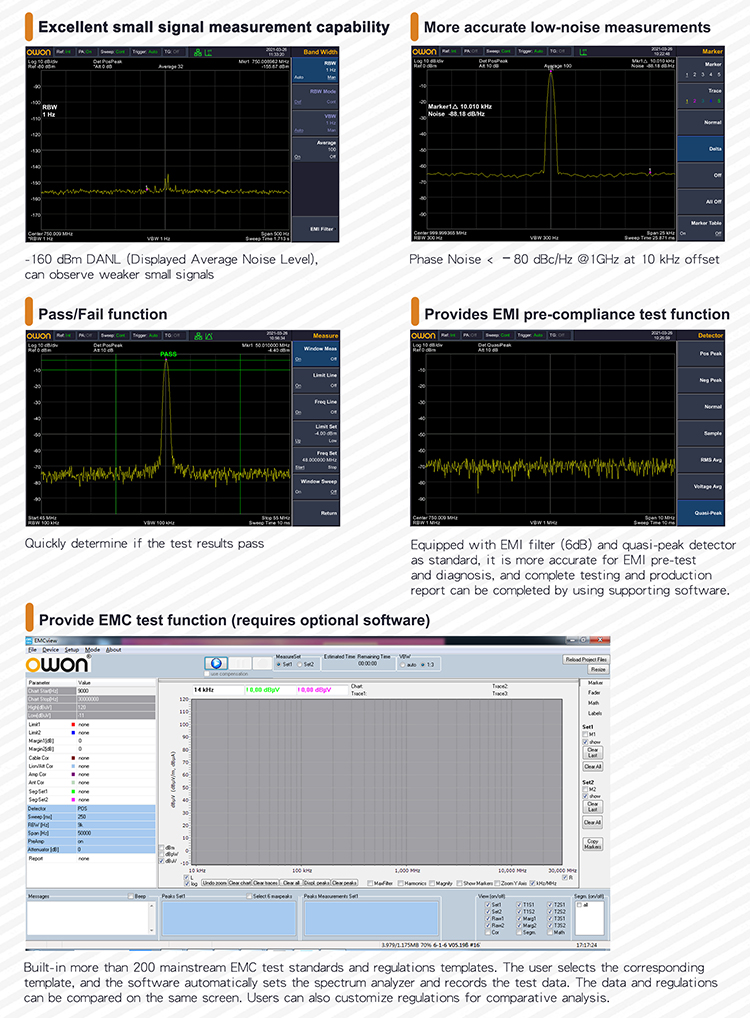

– Waterfall plot graphic, modulation signal quality analysis, audio demodulation, ect. multiple general and extended test functions.
– Standard Pass/Fail on-site test and alert function
– Adopt all-digital intermediate frequency technology
– Multiple interfaces: USB Host, USB Device, LAN, earphone interface, HDMI
– 9-inch LCD, high resolution 1280×800 pixels

$2.823.150

CARACTERÍSTICAS PRINCIPALES

– Frequency range 9kHz – 1 GHz
– 160 dBm Displayed Average Noise Level (DANL)
– Phase noise -80 dBc/Hz @1GHz and offset at 10 kHz
– Total amplitude accuracy <0.7 dB
– 1 Hz minimum resolution bandwidth (RBW)
– EMI pre-compliance test kit, optional EMC test software
– Optional tracking generator (standard tracking generator hardware, can be remotely upgraded according to needs)
– Waterfall plot graphic, modulation signal quality analysis, audio demodulation, ect. multiple general and extended test functions.
– Standard Pass/Fail on-site test and alert function
– Adopt all-digital intermediate frequency technology
– Multiple interfaces: USB Host, USB Device, LAN, earphone interface, HDMI
– 9-inch LCD, high resolution 1280×800 pixels

DESCARGAR MANUAL DESCARGAR FICHA TÉCNICA DESCARGAR GUÍA RÁPIDADESCARGAR SOFTWARE



ESPECIFICACIONES TÉCNICAS:



Frequency
Frequency Range XSA805（TG） 9 kHz to 500 MHz
XSA810（TG） 9 kHz to 1 GHz
XSA815（TG） 9 kHz to 1.5 GHz
Frequency Resolution 1 Hz
Reference frequency aging rate < 1 ppm/year
Frequency Span
Span Range 0 Hz, 100 Hz to max frequency of instrument
Span Uncertainty ± span / (sweep points-1)
SSB Phase Noise(20℃ to 30℃, fc = 500 MHz)
Carrier Offset 10 kHz < -80 dBc/Hz
100 kHz < -100 dBc/Hz
1 MHz < -115 dBc/Hz
Bandwidth
Resolution Bandwidth（-3 dB） 1 Hz to 1 MHz, in 1-3-5-10 sequence
Resolution Bandwidth (-6 dB) (EMI) 200 Hz, 9 kHz, 120 kHz, 1 MHz
RBW Accuracy < 5% typical
Resolution Filter Shape Factor (60 dB : 3 dB) < 5 typical
Video
Bandwidth (-3 dB)		 10 Hz to 1 MHz, in 1-3-5-10 sequence
Amplitude and level
Amplitude measurement range DANL to +10 dBm, 100 kHz to 10 MHz, Preamp Off
DANL to +20 dBm, fc ≥ 10 MHz, Preamp Off
Reference Level -80 dBm to +30 dBm, 0.01 dB by step
Preamp 20 dB, nominal, 100 kHz to 1.5 GHz
Input Attenuator XSA805（TG）
XSA810（TG）
XSA815（TG）		 0 to 40 dB, 1 dB by step
Display Average Noise Level (Input attenuation = 0 dB, RBW = VBW = 100 Hz, sample detector, trace average ≥ 50, 20℃ to 30℃, input impedance = 50 Ω)
Preamp Off 9 kHz to 1 MHz -95 dBm (Typical), <-88 dBm
1 MHz to 500 MHz -140 dBm (Typical), <-130dBm
XSA810(TG) 500 MHz to 1 GHz
XSA815(TG) 500 MHz to 1.5 GHz -138 dBm (Typical), <-128 dBm
Preamp On 100 kHz to 1 MHz -135 dBm (Typical), <-128 dBm
1 MHz to 500 MHz -160 dBm (Typical), <-150 dBm
XSA810(TG) 500 MHz to 1 GHz
XSA815(TG) 500 MHz to 1.5 GHz -158 dBm (Typical), <-148 dBm
Level Display
Trace detectors positive-peak, negative-peak, normal, sample, RMS, voltage average, quasi-peak
Trace functions clear write, max hold, min hold, average, view, blank, trace math
Units of level axis dBm, dBμW, dBpW, dBmV, dBμV, W, V
Frequency response
(fc ≥ 100 kHz, 20℃ to 30℃,30% to 70% relative humidity, input attenuation=10 dB, reference frequency= 50 MHz)
Preamp Off ＜0.7 dB
Preamp On ＜1.0 dB
Difference and Accuracy
Uncertainty fc = 50 MHz, peak detector, preamplifier off, attenuation = 10 dB, input signal level = -10 dBm, 20℃ to 30℃
＜ 0.4 dB
Level Measurement Uncertainty
Level measurement uncertainty 95% confidence level, S/N > 20 dB, RBW = VBW = 1 kHz, preamplifier off, attenuation = 10 dB, -50 dBm < input level ≤ 0 dBm, fc > 10 MHz, 20℃ to 30℃
＜ 0.7 dB
Tracking Generator (optional)
Frequency Range  XSA805（TG） 100 kHz to 500 MHz
XSA810（TG） 100 kHz to 1 GHz
XSA815（TG） 100 kHz to 1.5 GHz
Output power
level range		 -40 dBm to 0 dBm
Output level resolution 1 dB
Output flatness Relative to 50 MHz
± 3 dB
Tracking generator spurious Harmonic spurious -30 dBc (Tracking generator output power -10 dBm)
Non-harmonic spurious -40 dBc (Tracking generator output power -10 dBm)
Tracking generator to input terminal isolation -60 dB (Tracking generator output power 0 dBm)
Interface

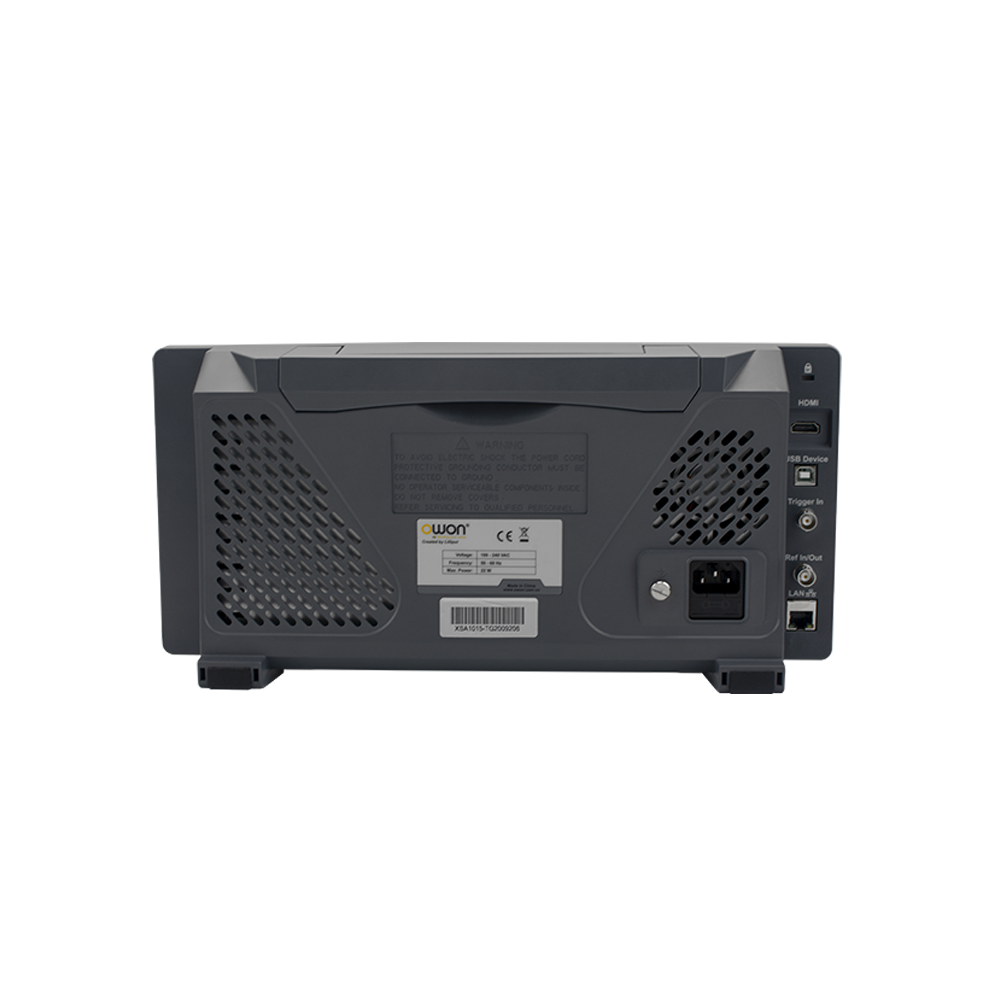

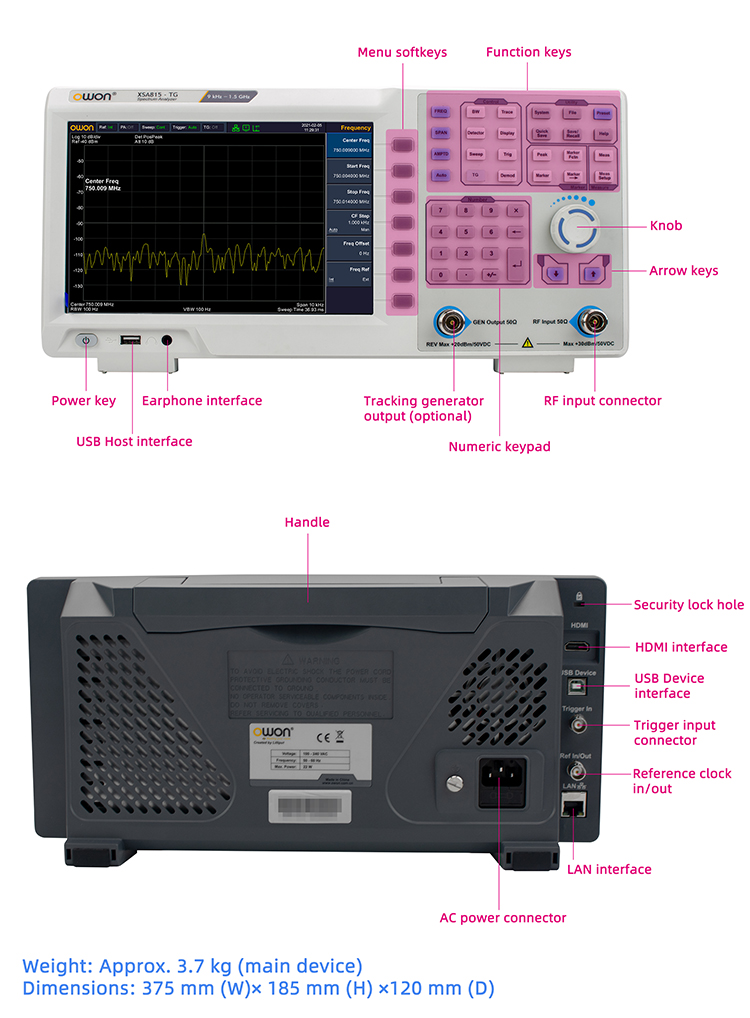

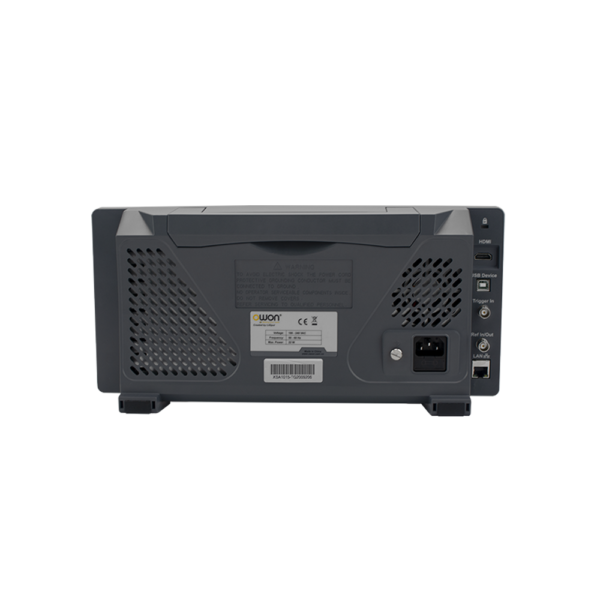

USB Host, USB Device, LAN, earphone interface, HDMI
Display
9-inch TFT LCD, 1280 x 800 pixels
Appearance
Dimensions 375 mm (W) × 185 mm (H) × 120 mm (D)
Weight Approx. 3.7 kg (main device)

INCLUYE

– Cable de alimentación
– Cable USB
– Manual de usuario
