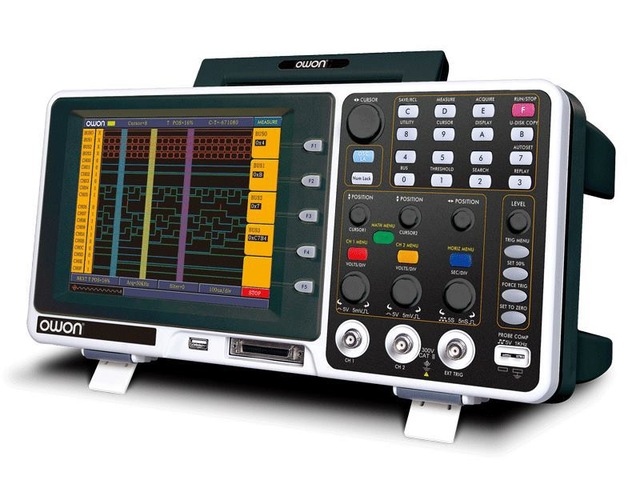

MSO7102TD – Osciloscopio Digital 2 Canales 100 MHz+ Analizador Lógico 16 Canales Owon

CARACTERTISTICAS PRINCIPALES:

-2 in 1 (DSO + LA)
– 8 inch color LCD
– USB data transmission supported
– 20 automated measurements
-Digital Storage Oscilloscope
– Bandwidth : 100MHz
– Sample rate : 1 GS/s
– Auto-scale function

DESCARGAR MANUAL DESCARGAR FICHA TÉCNICA

DESCARGAR SOFTWARE OSCILOSCOPIO DESCARGAR SOFTWARE ANALIZADOR

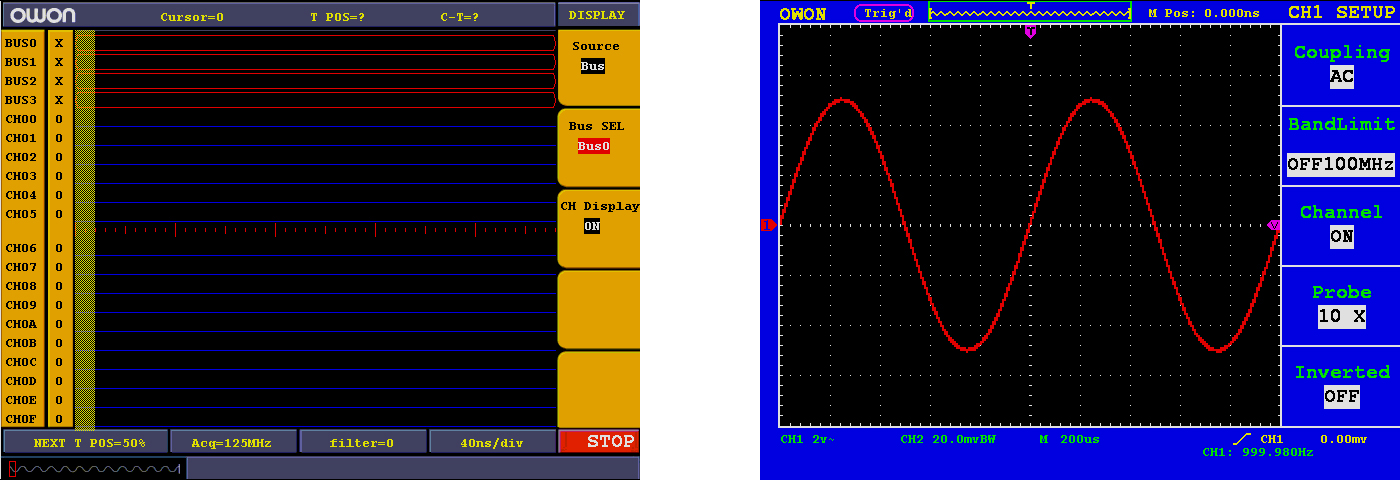

El osciloscopio y el analizador lógico de 16 canales admiten múltiples modos de disparo, incluidos bus, estado, alineación de datos, ancho de datos, trenza distribuida, etc.

FUNCIONES TÉCNICAS DEL OSCILOSCOPIO

-Bandwidth 100MHz
-Sample Rate 1GS/s
-Rise Time =3.5ns
-Display 8» color LCD , 640 x 480 pixels
-Channel dual + external trigger
-Horizontal Scale (s/div) 2ns/div – 100s/div, step by 1 – 2 – 5
-DC Accuracy (average) average>16 : (3% reading + 0.05div) for ?V
-Vertical Sensitivity 2mV/div – 10V/div
-DC Gain Accuracy 3%
-Vertical Resolution (A/D) 8 bits (2 channels simultaneously)
I-nterpolation sin(x)/x
-M-ax Input Voltage 400V (DC + AC peak)
-Probe Attenuation Factor 1X,10X,100X,1000X
-Trigger Mode Edge, Video, Alternate, Pulse, and Slope
-Acquisition Mode Normal, Peak Detect, and Average
-Record Length 2M points
-Waveform Storage 4 waveforms
-Automatic Measurement
-Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot,
-Rise Time, Fall Time, Delay A?B , Delay A?B , +Width, -Width, +Duty, -Duty
-Waveform Math +, -, *, /, invert, FFT
-Power Supply 100 – 240V AC, 50Hz / 60Hz, CAT II

FUNCIONES TÉCNICAS DEL ANALIZADOR LÓGICO

-Sample Rate 20S/s – 1GS/s
-Bandwidth 100MHz
-Channel 16
-Record Length 4M points
-Input Impedance 660KO ? 5%, in parallel with 15 : 5pF
-Trigger Mode Edge, Bus, State, Data Alignment, Data Width, and Distributed Queue
-Trigger Position Setting Pre-trigger, Mid-trigger, and Re-trigger
-Threshold Voltage :6V (4 settings)
-Input Signal Range :30V
-Data Search available
-Data System binary, decimal, and hex
-Digital Filter 0, 1, 2 optional
-Setting Storage 10 settings
-USB Flash Disk Storage available

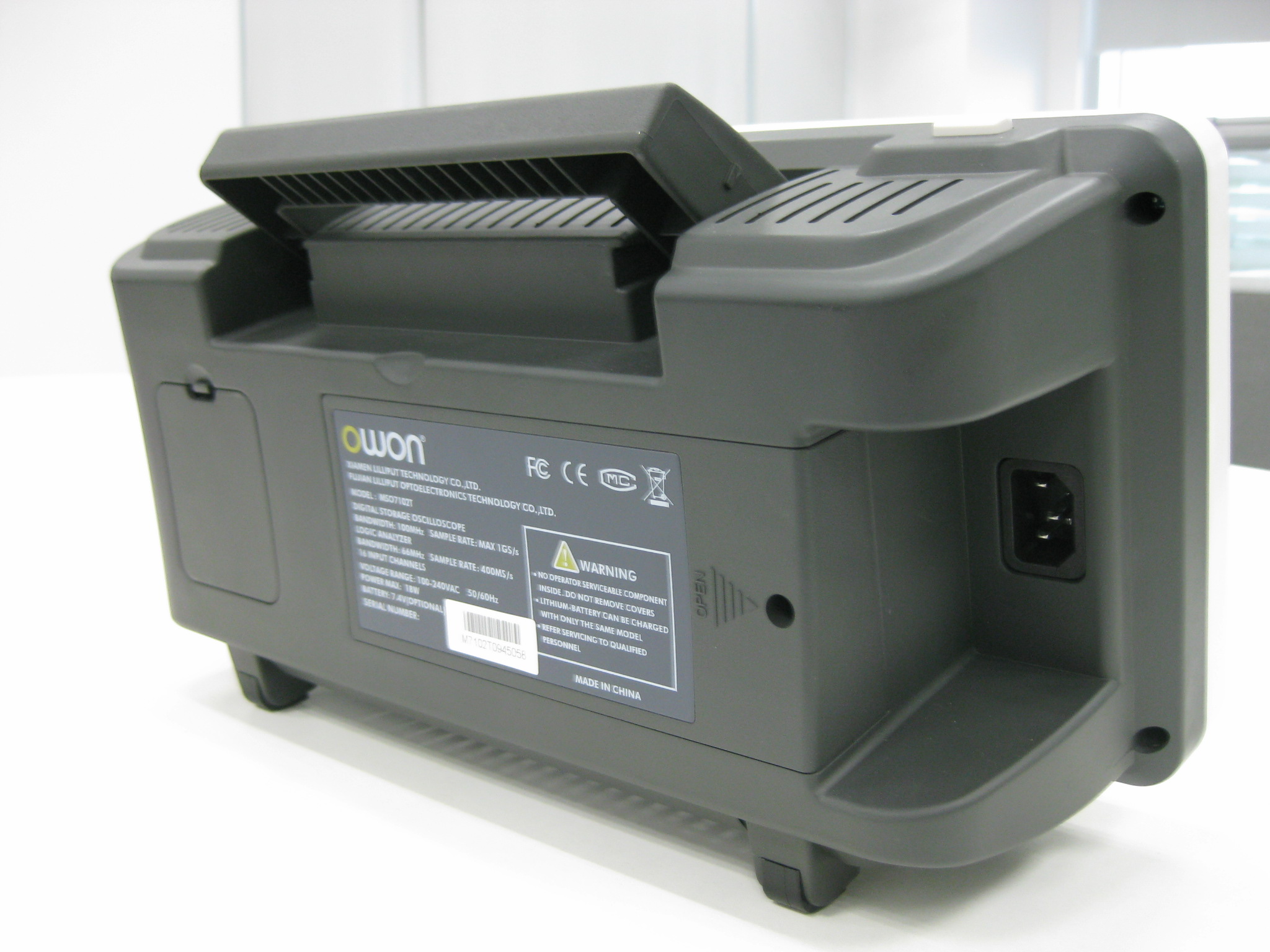

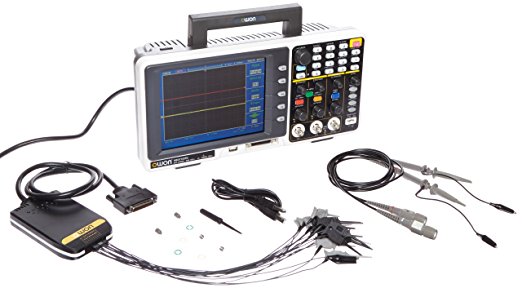

INCLUYE

– Cable de alimentación
– Cable USB
– CD Rom con el software
– Manual de usuario en español
– 2 Puntas de prueba x1:x10

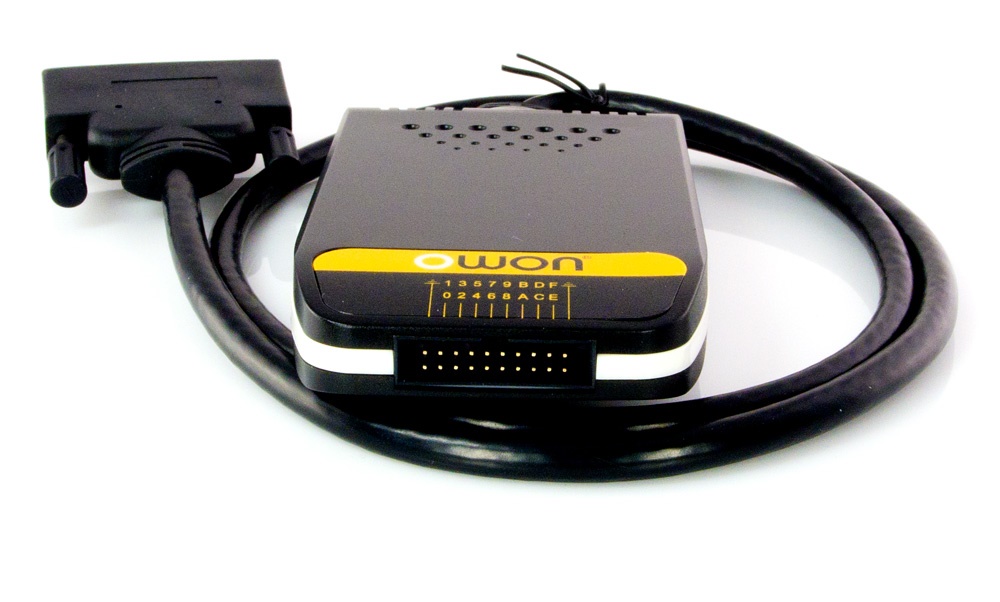

-modulo de analizador logico
-Bolso opcional
