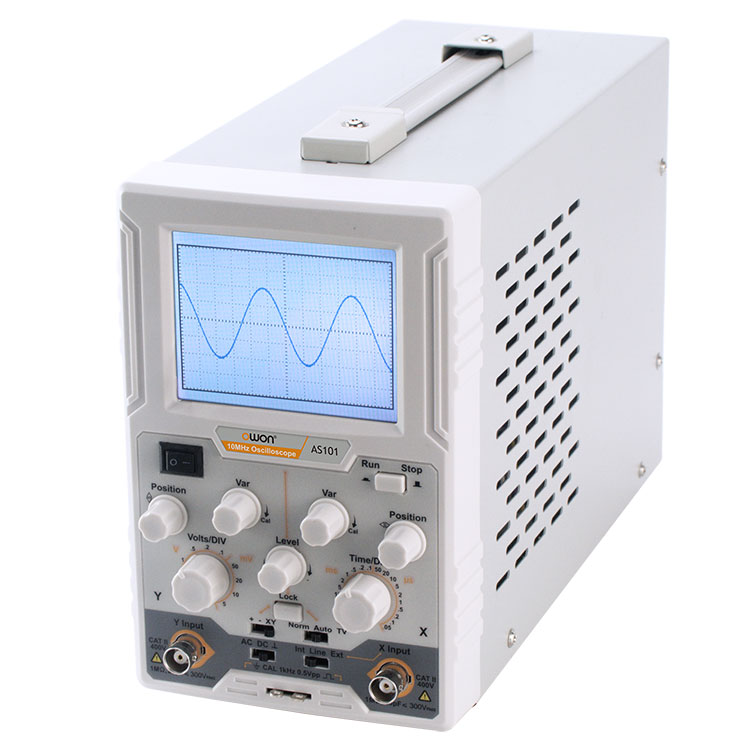

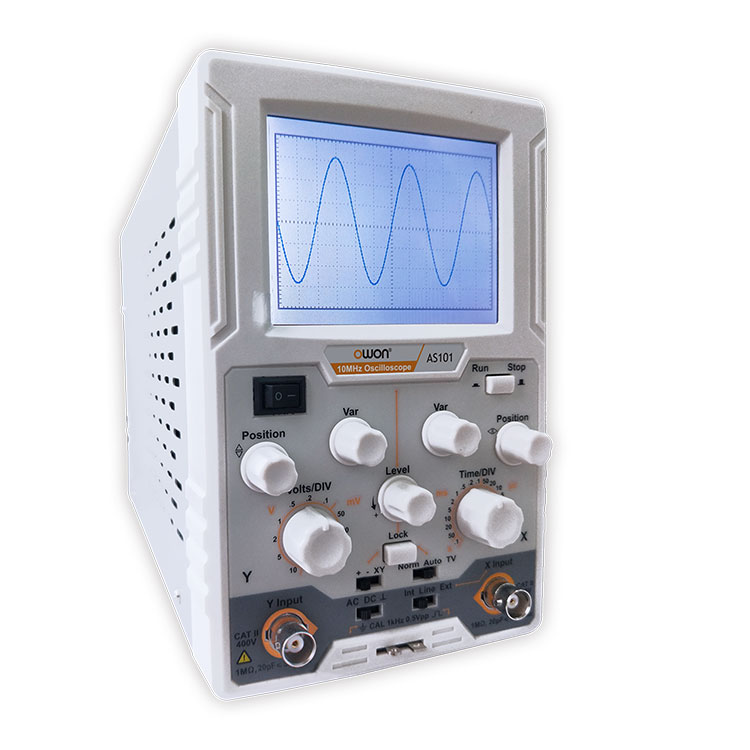

Osciloscopio Digital Compacto Owon 20 Mhz 1 Canal Mod AS201 Tipo Analógico

CARACTERÍSTICAS PRINCIPALES:

+ La mejor opción para reemplazar un osciloscopio analógico

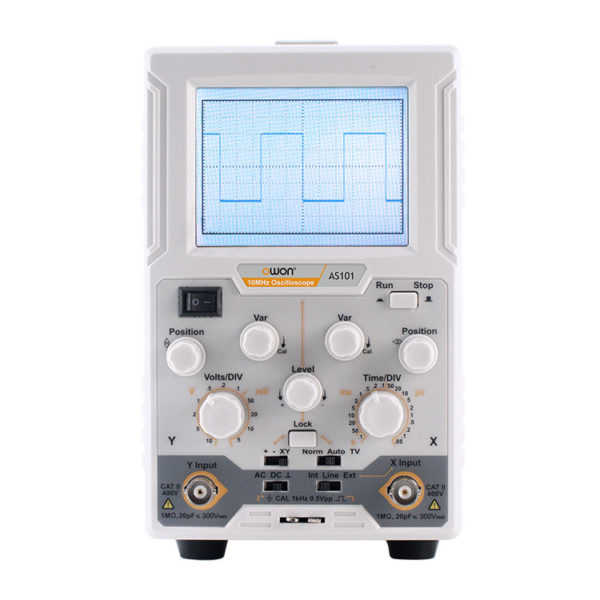

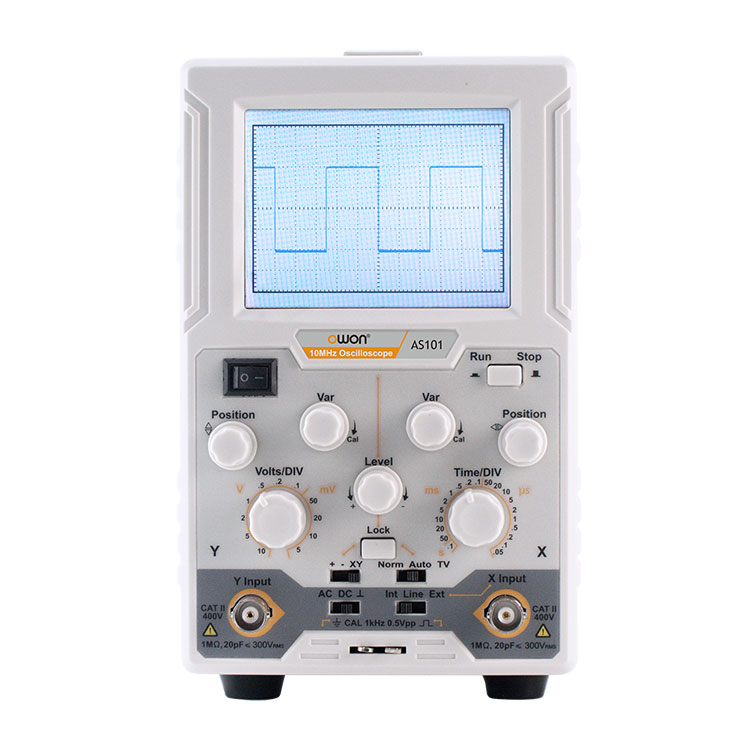

+ Panel de control muy simple similar a un osciloscopio analógico

+ Ancho de banda: 20MHz

+ Frecuencia de muestreo: 100MS / s

+ 1 canal

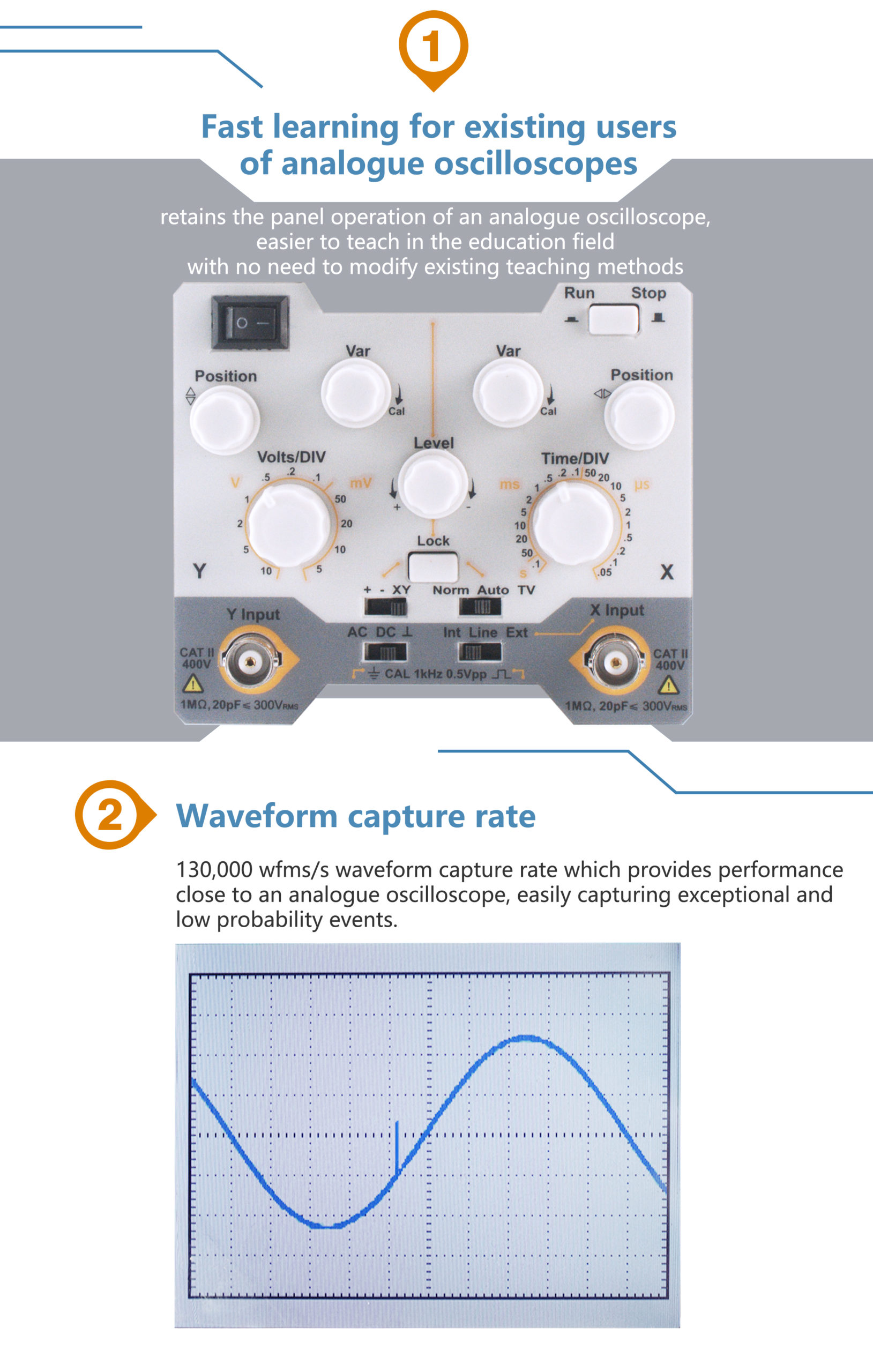

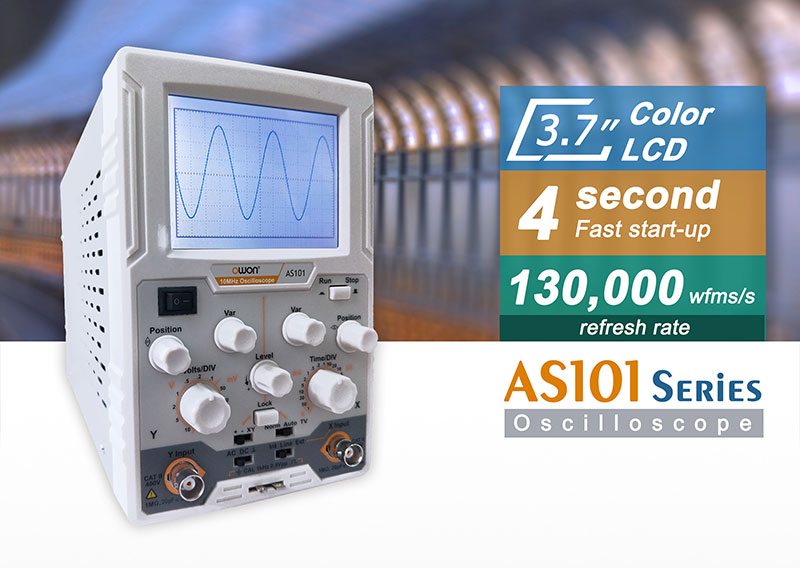

+ Velocidad de captura de forma de onda de + 130,000 wfms / s, capturando fácilmente eventos excepcionales

+ LCD en color de + 3.7 »

+ Estuche compacto

DESCARGAR MANUAL DESCARGAR FICHA TÉCNICA

ESPECIFICACIONES TÉCNICAS:

Model AS201
Bandwidth DC:0~20MHz, AC: 10 Hz~20MHz
Channel 1
Horizontal system
Sample Rate 100MS/s
Interpolation (Sinx)/x
Scanning speed
(S/DIV) 0.05us/DIV ~ 0.1s/DIV,step by 1 – 2 – 5
relay time accuracy ±100 ppm
Trimming Ratio ≧2.5:1
Vertical system
Sensitivity 5 mV/DIV～10 V/DIV
Displacement ±10DIV
Low Frequency ≥10 Hz (at input, AC coupling, -3 dB)
Rise time (at input,
Typical)
≤ 30 ns
Trimming Ratio ≧2.5:1
Input coupling DC, AC , Ground
Input impedance 1 MΩ±2%, in parallel with 20 pF±5 pF
Max. input voltage 400V (DC+AC, PK – PK)
X-Y Model
Sensitivity X:0.5V/DIV Y:0.1V/DIV ~ 1V/DIV
Bandwidth(-3dB) DC: 0 ~ 1MHz AC: 10Hz ~ 1MHz
Trigger
Trigger level range ±4 DIV from the screen center
Trigger level Accuracy (typical) ±0.3 DIV
Trigger Sources Int, Line, Ext
Trigger Mode Norm, AUTO, TV
Edge trigger Rising, Falling
Video Trigger Support standard NTSC, PAL and SECAM broadcast systems

Sample Rate / Relay Time ±100ppm
Trigger lock support
Ext. Trigger Input Impedance 1 MΩ±2%, in parallel with 20 pF±5 pF
Ext. Trigger Max. Input Voltage 400Vpp
Trigger Output of the probe
compensator
Output Voltage (Typical) Square, 0.5Vpp±2%
Frequency (Typical) Square wave of 1 kHz(±1%)
Display 3.7″ Colored LCD (Liquid Crystal Display)

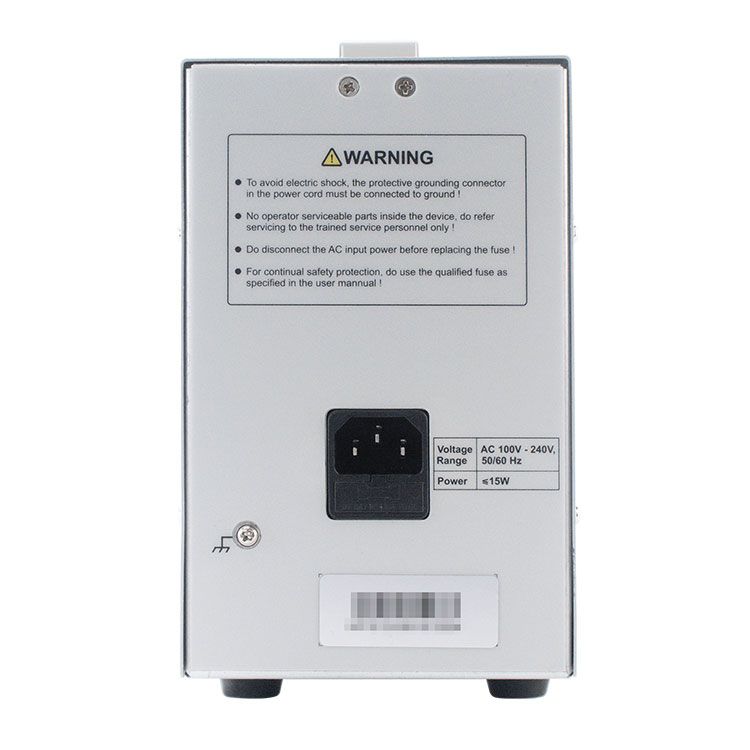

Power Supply 100V – 240V AC, 50/60Hz, CAT II
Power Consumption ＜15W
Fuse 1A, T class, 250V
Dimension (W x H x D) 117 x 192 x 288 mm
Device Weight About 1.8 kg
